Grinding for Decades, Devoted to API Valves
13 Years
| Ask Lasest Price | |
| Brand Name : | Ruitong |

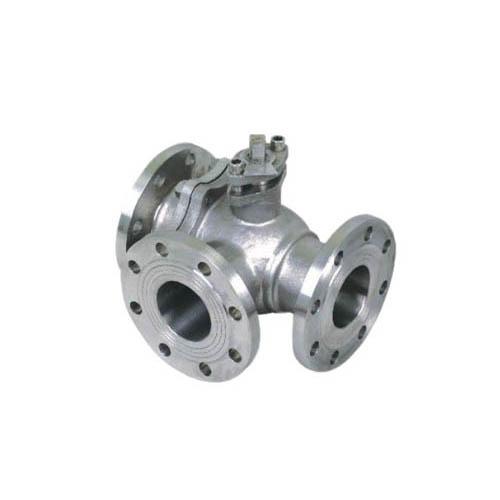

| Model Number : | Q44F |
| Certification : | |
| Price : | |
| Delivery Time : | 15days |
| Payment Terms : | T/T |
| Supply Ability : | 2,000 |
| basic information | |
| size range | DN15~200mm (1/2"~8") |
| working pressure | PN1.6~6.4Mpa, 150~300LB, 10K, 20K |
| suitable temperature | -29-250℃ |
| Suitable medium | water, gas, oil |
| CF8(304): suitable for nitric acid | |
| CF8M(316): suitable for acetic acid | |
| Technical Standard | |
| Design Standard | GB/T12237, API6D, BS5351 |
| pressure-temperature rating | GB/T12224, ANSI B 16.34 |
| Face to face standard | GB/T12221, ASMEB16.10, BS4460, DIN3202 |
| End flange Std | GB9113, JB79, ASME B16.5a, DIN2543~2546, |
| BS4504, JISB2213~22 | |
| Test Standard | GB/T13927, ISO5208, API598, API6D |
| Material | WCB, A105, CF8(304), CF8M(316) |
| Operated way | Manual, Gearcase, Pneumatic, Electric |
|
|
